Fireclass

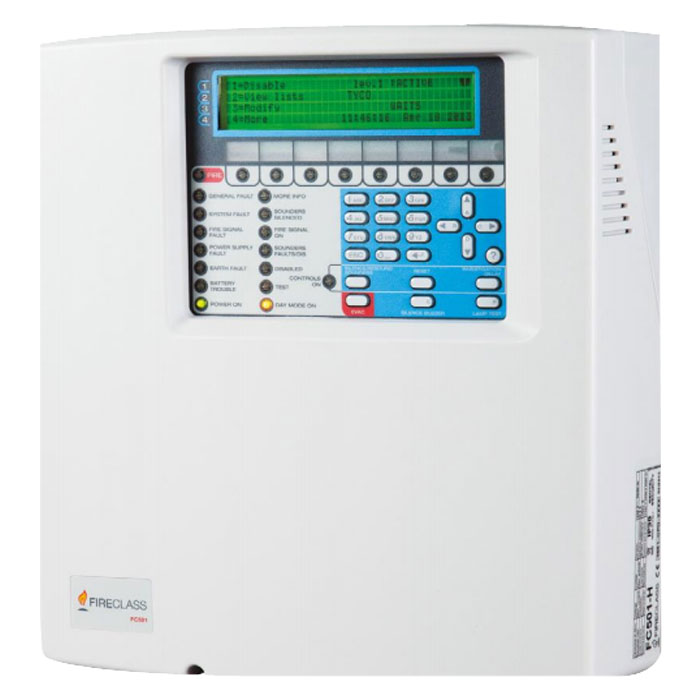

Addressable Fire Alarm Panel FC501

General features

3 in 1 loop panel.

  • Up to 400mA current dynamically shared across 3 loop circuits.
  • Up to 128 Addresses / 32 Zones.
  • Easy to programme.
  • Out-of-the-box, fully programmable via keypad.
  • Auto Addressing.
  • Auto Mapping with Intelli-Zone feature.
  • On screen help function.
  • USB port dual role Host/Device to upload/download language file, firmware, configuration, vocal messages, etc.
  • Walk test function.
  • Loop break location.
  • 4000 Event Log.
  • On board PSTN communicator.
  • Optional IP board.
  • Up to 4 repeaters.
  • Fast and simple system configuration via software, also offline.
  • Battery/wiring calculation and customizable cables database.
  • Remote real time visualization of control panel loop & zone status, etc via IP.
  • Easy Remote user interface with control buttons (reset, silence, evacuate).
  • Multilevel map based on a tree structure.
  • Capability to print zone label sheet for front panel customization.

Item code/ name:

557.200.718 / FC501-H
557.200.719/ FC501-L
557.200.720 / FC501-HK

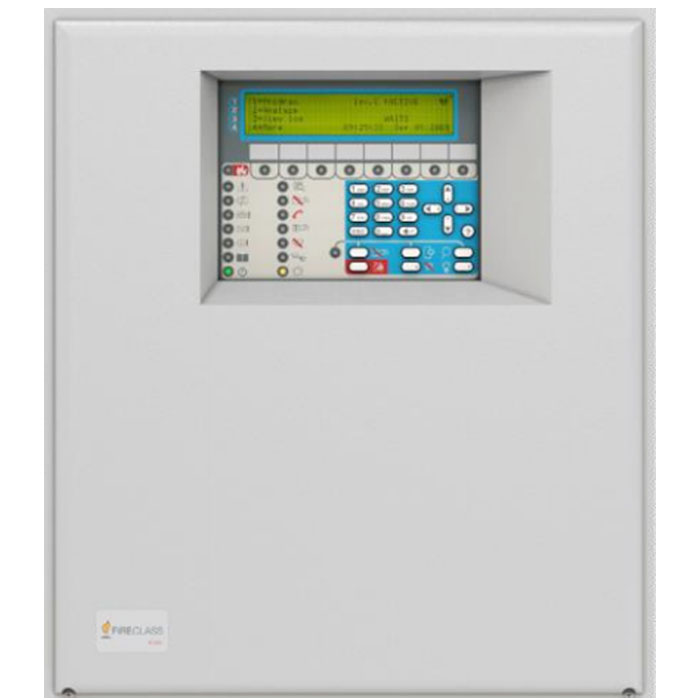

Addressable Fire Alarm Panel FC503 and FC506

General features

  • Up to 1A current dynamically shared across the loop circuits
  • Auto mapping with Intelli-Zone feature
  • Online Help function
  • USB interface dual role Host/Device
  • Multi users and multi installers (Up to 2 installers, 8 users)
  • Walk test function
  • 4000 Event Log
  • Loop break location
  • On board PSTN communicator
  • GSM/GPRS as external module
  • Up to 8 repeaters and up to 7 FC500 Series panel clients
  • Event transmission through PSTN and IP
  • Automatic drift compensation

Item code/ name:

557.200.725 / FC503: 3 Loop Panel 250 Points
557.200.726 / FC506: 6 Loop Panel 500 Points
557.200.727 / FC500 FireClass Repeater

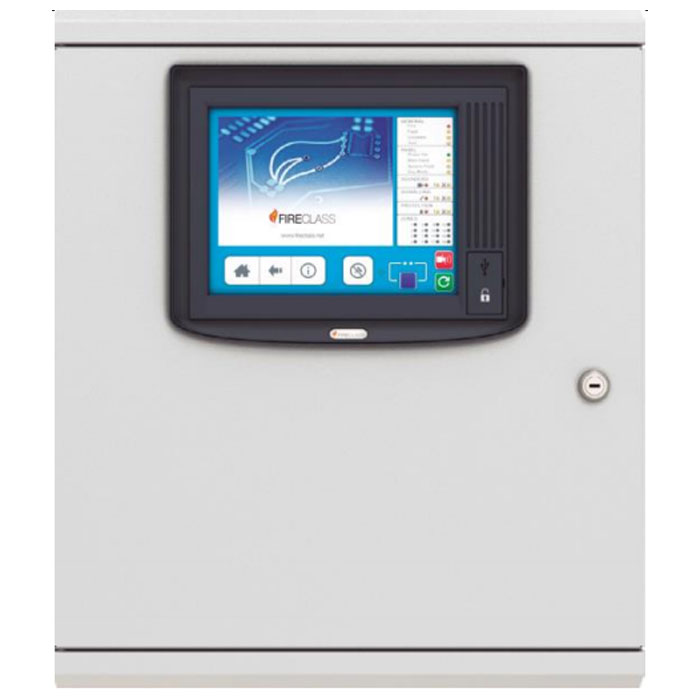

Addressable fire alarm panel FC 702

General features

  • 8.4” TFT colour touch screen multilingual user interface
  • Ergonomic Icon Displa
  • Touch sensitive status LEDs provide event summary information
  • Context sensitive help and on screen operator instructions
  • User configurable on screen site maps
  • Programmable graphic quiescent display
  • Comprehensive point management and disable functions
  • Selectively view or print from the extensive 10,000 event log using dynamic filters
  • Keyless log-on using RFID tags
  • Flexible single or dual hardware loop configurations
  • Compact shallow housing or deep housing

Item code/ name:

557.200.949 FC702S - One HP or two SP Loop FireClass Panel shallow housing
557.200.950 FC702D - One HP or two SP Loop FireClass Panel deep housing

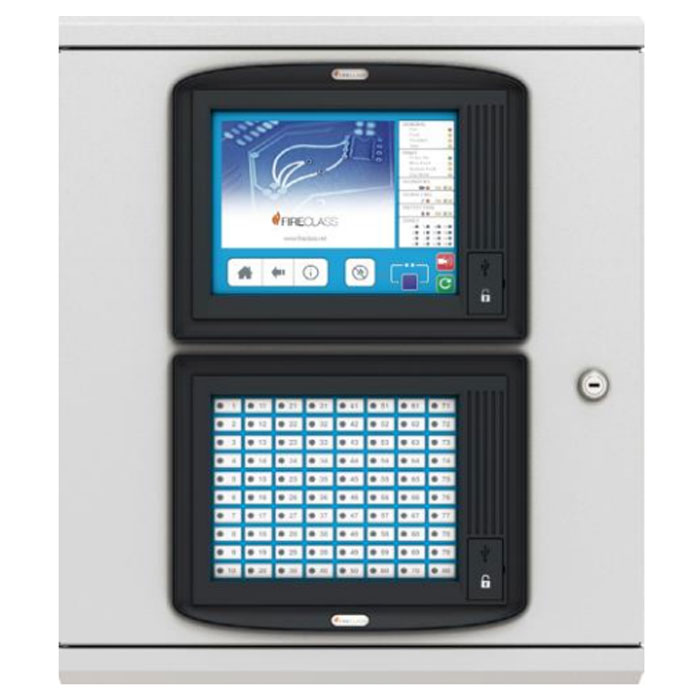

Addressable Fire Alarm panel FC 708

  • 8.4” TFT colour touch screen multilingual user interface
  • Ergonomic Icon Display
  • Touch sensitive status LEDs provide event summary information
  • Context sensitive help and on screen operator instructions
  • User configurable on screen site maps
  • Programmable graphic quiescent display
  • Comprehensive point management and disable functions
  • Selectively view or print from the extensive 10,000 event log using dynamic filters
  • Keyless log-on using RFID tags
  • Flexible single or dual hardware loop configurations
  • Compact shallow housing or deep housing

Item code/ name:

557.200.951 / FC708D - Two HP or four SP loop, expandable to eight loop, FireClass Panel
557.200.952 / FC718D - Two HP or four SP loop, expandable to eight loop, FireClass Panel

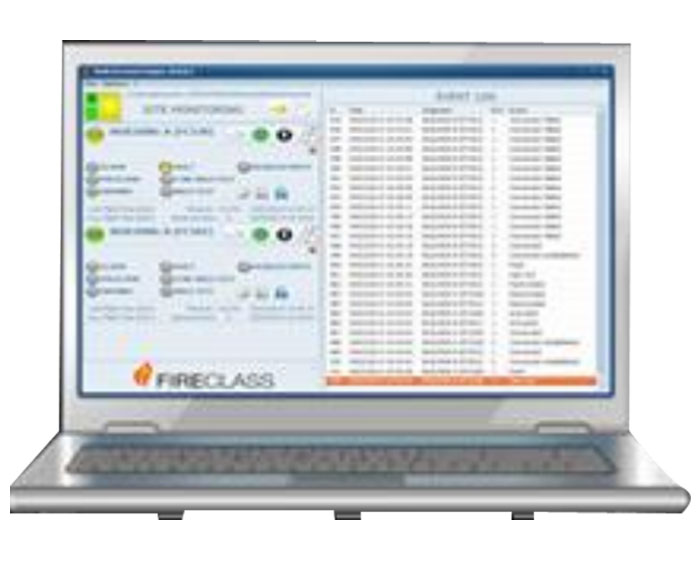

Panels Monitoring Software FC500

General features

  • Remote management via Ethernet.
  • Monitors up to 32 FC500 Series panels (FC501, FC503, FC506).
  • Pop-up and audio notification on new events.
  • Traffic light style indicators for panels status.
  • Overall system status indicator.
  • Integrated with FireClass Console and FireClass 500 Console software.
  • Quick link to the FireClass graphic maps.
  • Single log file for the whole monitored system.
  • Data encryption by AES128
+91 9819522000

Item code/ name:

557.202.726 / FC-MAE

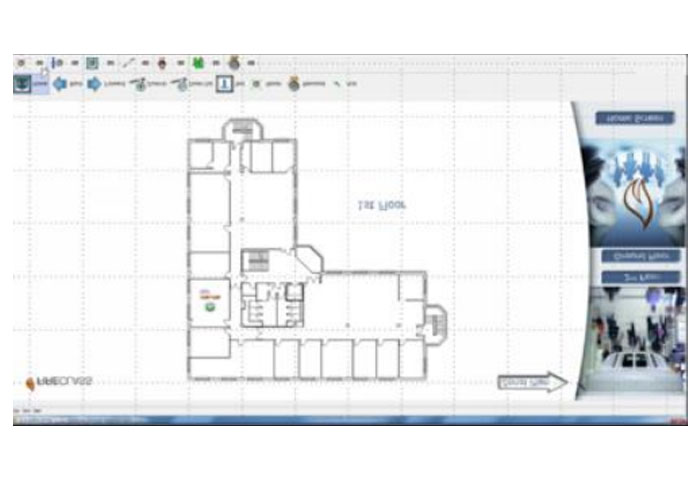

File alarm FC Graphics Software

General features

  • Real Time visualization of control panel, loop and zone status
  • Multi-level maps based on tree structure
  • Access device data from any page of the map
  • Supports standard PC image file (i.e. gif, jpg, bmp)

Item code/ name:

508.070.001 / FCG Soft. Licence-1 Panel
508.070.002 / FCG Soft. Licence 2-4 Panel
508.070.003 / FCG Soft. Licence 5-10 Panel
508.070.004 / FCG Soft. Licence 11-24 Panel
508.070.005 / FCG Additional Client licence

Addressable Series Detectors FC460

The FC460 range of detectors use the FireClass digital protocol to provide robust and reliable communications to the control panel. A wide range of cable types can be used and the open topology capability of the system makes it ideal for the upgrade of older systems whilst reusing the cables to reduce cost. FireClass FC460 detectors provide the best in class environmental and detection performance with the capability of detecting all fire types. The range includes an Optical/Heat Multisensor and Optical/Heat/CO Triple Multisensor.Automatic self testing of each sensor element offers reassurance of operation at all times and the 360º alarm, isolated and fault LED on each detector provides instant line of sight. Fourteen EN54 approved modes/sensitivities for the Optical/ Heat Multisensor help to provide one of the best and most versatile detectors on the market.

General features

  • Multiple fire detection modes.
  • FireClass detection algorithms.
  • CO fire detection technology.
  • Up to 250 detectors per loop.
  • Optional bi-directional line isolation.
  • Remote detector verification & temperature read out.
  • Highly featured service tool.
  • Programmable alarm LED with 360º viewing angle.
  • Optional detector locking pin.
  • Variety of sounder and relay detector base.
  • Internationally approved.
  • Colour variant - RAL9016 Traffic White*

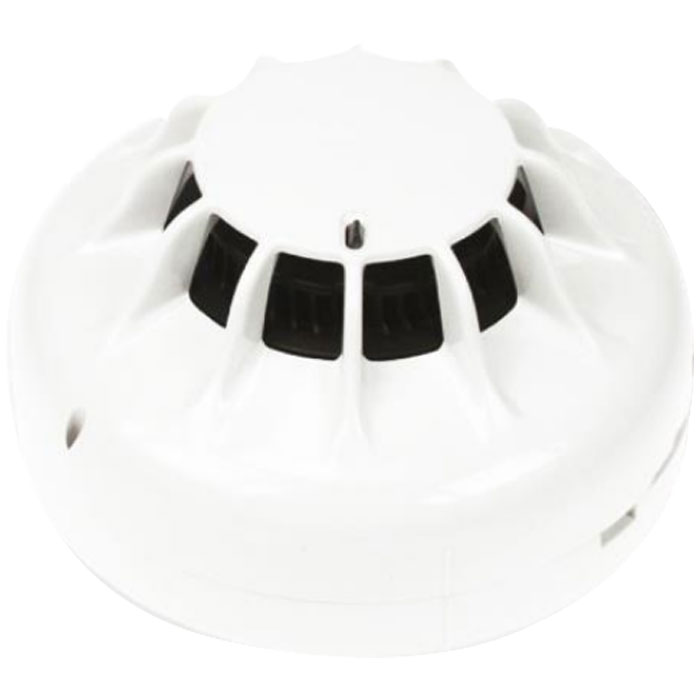

Addressable Combined Optical and Heat Detector

General features

With its ability to detect a wide range of fires, from flaming to smouldering types, the combined optical and heat multisensor detector is the preferred choice for a range of applications including light industrial, retail and office environments. It operates in a number of approved modes and sensitivities that can be dynamically selected to suit different environmental conditions.

Item code/ name:

516.460.501 FC460PH

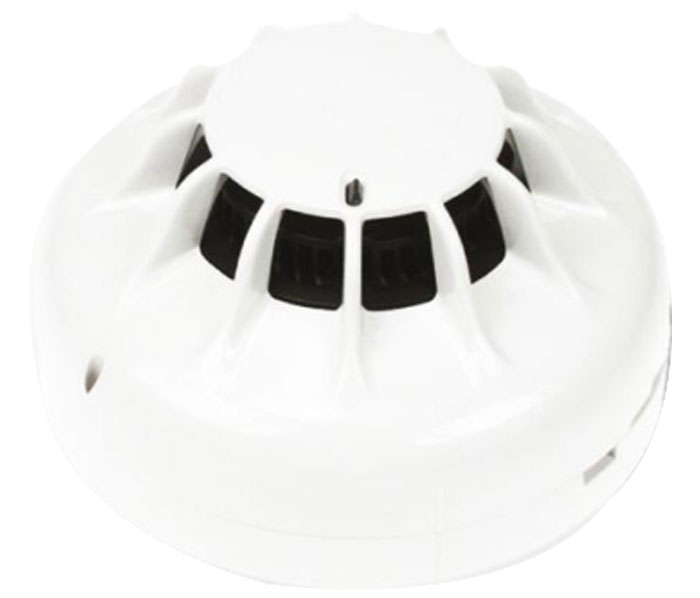

Addressable Smoke, Heat and CO Detector

General features

For life protection and when the environmental conditions are challenging, the multisensor smoke, heat and CO detector provides the ultimate in detector performance. It uses the three sensor elements in concert to accurately determine the presence of fire with false alarm rejection properties that make it the ideal choice for hotel bedrooms where steam from bathrooms is a common source of false alarms.

Item code/ name:

516.460.504 / FC460PC

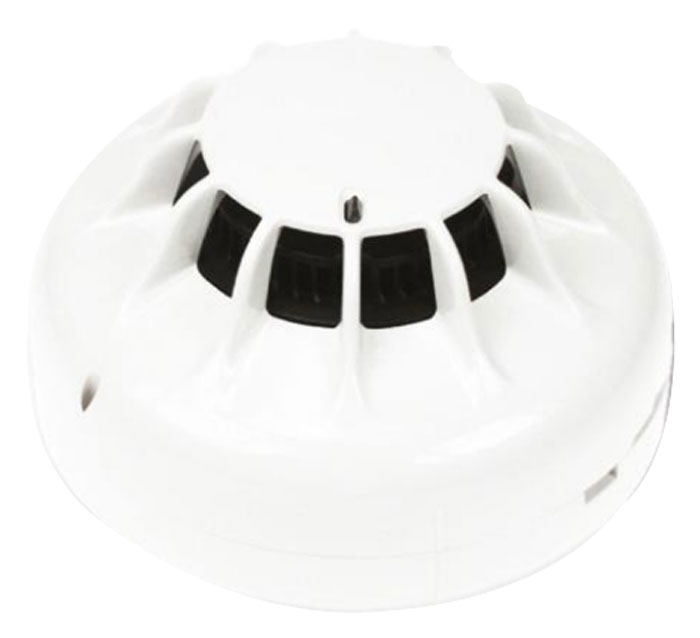

Addressable Optical Detector

General features

More benign environments where any potential fire will be slow burning can be protected using the optical detector. A choice of sensitivities gives this detector a broad range of applications.

Item code/ name:

516.460.502 / FC460P

Addressable O and Heat Detector

General features

The FC400CH is designed to transmit digital signals representing the status of the carbon monoxide and heat elements of the detector. For use with the FireClass 500 panel.

Item code/ name:

516.800.701 / FC400CH

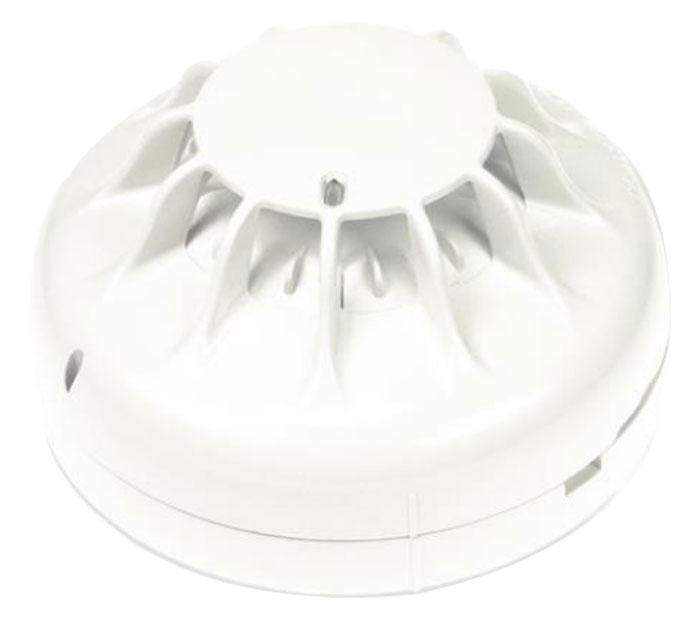

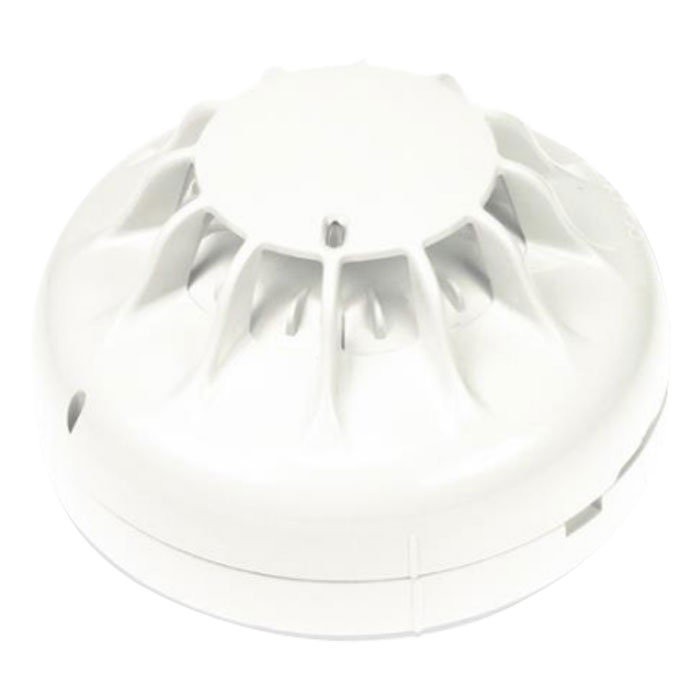

Addressable Heat Detector

General features

Complimenting the range is the heat sensor which can operate in fixed temperature and rate-of-rise modes. It is most often used in areas where high levels of dust are present or where the environment precludes the use of smoke detectors.

Item code/ name:

516.460.503 / FC460H
